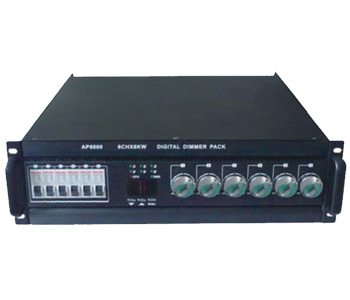

X6KW AP6000-6 road - digital silicon knob adjustable light box (3 u)
Detail Info

Technical parameters:

(1) power supply: three-phase five wire AC380V plus or minus 10%, 50 hz frequency plus or minus 5%.

(2) the signal interface: digital double DMX - 512 (1990).

(3) power rating: 6 x 6 kw. Each loop maximum output power up to 7 kw.

(4) the overall dimensions (mm) : L515 * W485 * H133, single weight: 18 kg.

Function characteristics:

1. At the heart of the thyristor device chip of silicon box is the German original installation import materials, stable and reliable performance.

2. Good heat dissipation device and forced air cooling combined with intelligent environmental control system.

3. Efficient anti-interference choke strong anti-jamming ability, low noise, current rise time, 220 us. Us - 450.

4. Each output 6 kw, a total of 6 road, the starting loop setting, can see the brightness &#118alue of each road.

5. DMX512 signal can be set to stay or not stay working state. In keeping the state, the adjustable light DMX signal interruption, will keep the final data, not dark field.

6. 6 road knob move light; Every road of the dimming curve can set it to linear or switch state, switch &#118alue of 50%, the brightness of the switch state input &#118alue is greater than or equal to 50% when corresponding circuit output, otherwise, no output.

7. High marks broken air switch overload and short circuit of dual protection.
