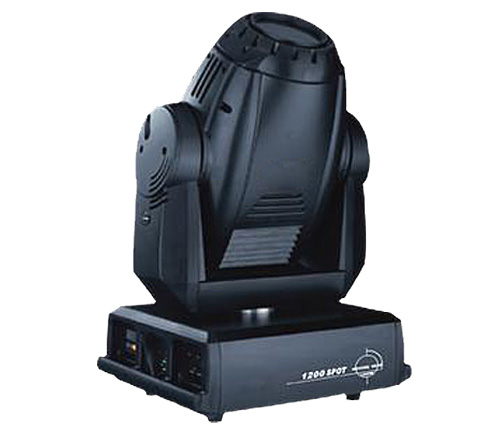

1200W(16CH)Moving head light
Detail Info

Technical parameters

Voltage: AC220-50-60 hz, 230 v (can be customized according to customer requirements)

Bulb: HMI1200W/S short arc discharge bubble total power: 1500 w

Insurance: 20 a

Color temperature: 6500 k

Lamp holder, high temperature resistant plastic king

Size of lamps and lanterns: L500 * H760mm W410

Carton size: L620 * H900mm W605

Air box size: L610 * H910mm W480

49 kg net weight, gross weight: 62 kg

Performance characteristics

In compliance with CE standard and GB7000.15-2000 standard

16 control channel; Standard DMX512 signal.

LCD English display system, can be very intuitive set personalization capabilities.

1 color plate, white + 7 colors, one-way rainbow effect,

Speed is adjustable.

Fixed pattern plate 1 with pattern jitter,

One-way flow effect, the speed is adjustable.

1 has the pattern jitter, one-way pattern plate rotating

Effect of water, the speed can be adjustable. Pattern can be arbitrary replacement.

A prism prism combination accident mirage effect,

Prism and reversing speed control freedom, built-in macro effect.

0 ~ 100% linear mechanical dimmer, strobe speed 1 ~ 12 times per second.

Electric light figure 5 ~ 100% linear adjustable beam size.

Electronic linear focusing 2 meters to infinite

Level 450 ° 16 bit resolution, vertical 270 ° 16 bit resolution

Horizontal vertical light lotus root reset system, after the misoperation accident happen, can automatically retrieve reparations

Good heat dissipation system fully, and overheating protection measures

With photoelectric detection, light bubble delay, has protective function to the lamp and control system, improve the stability of lamps and lanterns

Through external console window or lamp before body end plate control, editor of memory to run the program to the CPU in the body,

No programming controller can also be run or run a program that can be stored for eight scenes.

Set the security password for the client, can show light bulbs and lamps and lanterns use time
