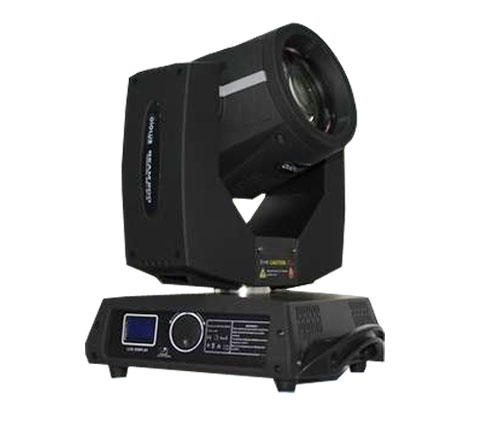

230WBeam of light
Detail Info

Electrical voltage: 110-240 - v 50/60 hz

Light bubble: OSRAM SIRIUS HRI 230 w

Philips MSD Platinum 5 r/OSRAM SIRIUS HRI 190 w

Color temperature: 8000 k

The average life expectancy: 2000 hours

Power source: 110-240 - v. 50/60 hz electronic ballast

Fixed pattern plate, pattern plate: a fixed pattern piece 17 + white light, high speed

Color plate, a fixed plate color, there are 14 kinds of replaceable color + white light, the color effect

Edge mirror: rotating eight lens, can be bi-directional rotation, can shrink large narrow beam effect

Photometric Angle: 0-3.8 °

Focus: linear focusing

A linear adjustment dimming: 0-100%

Stroboscopic: speed adjustable mechanical stroboscope and the dimming effect

Number of channels: there are 2 kinds of DMX channel mode is optional; 16, 20 channels

Display screen, LCD display screen

Optical lens: the combination of group 3 optical lens

Horse: 13 super mute motor, two of the three-phase motor, 16 bit driver

Level: 540 °

Vertical straight: 252 °

IP protection grade: 20

Single light carton packaging: 42 * 42 * 54 cm

Net weight: 16.5 KGS

Gross weight: 21 KGS

Air box 2 sets to: 95 * 46 * 71 cm

33 KGS net weight:

Gross weight: 65 KGS

Air box sets: 92 * 87 * 70 cm

Net weight: 68 KGS

Gross weight: 120 KGS
